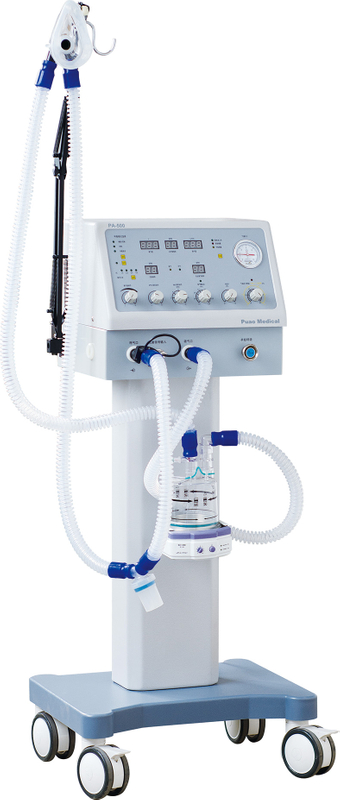

Medical Trolley Ventilator PA-500

Specifications

• Pneumatic power control, microcomputer control

• Operation control panel with clear LED display, easy to operate

• High quality humidifier

• High-quality pipeline, accessories, parts

Ventilator Host

• Scope: adults, children

• Drive: pneumatic power control

• knob operation and touch key

• Work: time to switch

• Breathing Mode:IPPV, SIPPV, IMV, SIMV, PEEP, Manu, Sigh and so on;

• Tidal Volume Adjustment:50~1200ml

• Respiratory Rate:6~60/m

• I/E ratio: 1: 1.5, 1:2.0, 1:2.5, 1:3

• (Ptr) Range:-0.4~1.0kPa

• The upper pressure limit: 1 ~ 6KPa

• PEEP: 0.1 ~ 1KPa

• Oxygen Concentration:<45%

• Transfer Time from Controlled to Assistant Respiration:6s

• Air Flow Adjustment:1~12times /m

• Sigh Volume:150% of tidal volume

• Ventilation Capacity per Minute:≥18L

• Maximum Safe Pressure:≤6.0kPa

• Air supply range:280~600kPa

• Monitoring parameters: tidal volume, minute ventilation, the total frequency, peak airway pressure, oxygen concentration, self-triggering

• Alarm parameters: the lack of oxygen supply, airway pressure upper limit airway pressure limit, power, sustained pressure, asphyxia, low tidal volume, oxygen concentration, gas missing

• Oxygen Consumption:≤1.5mPa change in pressure after 1-hour operation of oxygen cylinder of 12250kPa/40L.

• Power supply: AC220V, 50Hz

Humidifier

• Thermostat regulated

• Automatic over-temperature power-off protection
