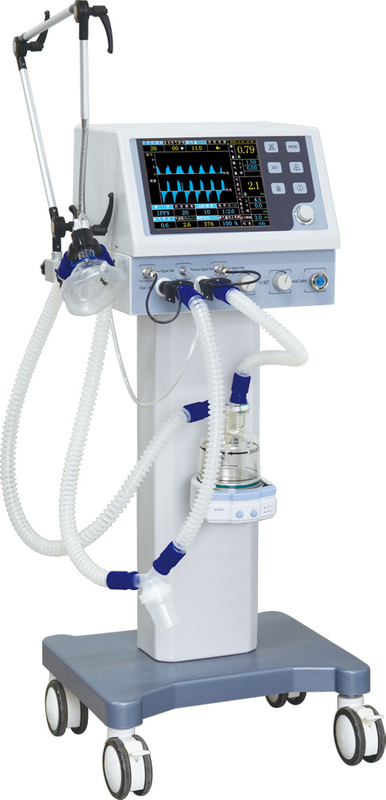

Medical Trolley Ventilator PA-700B

This paragraph ventilator for the multi-mode multi-function universal synchronous machine can be used to aid breathing and adjuvant therapy, the use of bright digital display technology, quick knob to set parameters, external single infrared sensor, a pressure trigger device with advanced heating humidifier, machine through the ISO certification.
  • PA-700B

Availability:
Quantity:
sharethis sharing button

Specifications

  • Pneumatic power control, microcomputer control

  • Operation control panel with clear 10.4' LCD display, easy to operate

  • High quality humidifier

  • High-quality pipeline, accessories, parts


Ventilator Host

  • Scope: adults, children

  • Drive: pneumatic power control

  • knob operation and touch key

  • Work: time to switch

  • Breathing Mode: IPPV, SIPPV, IMV, SIMV, Manu

  • Tidal Volume Adjustment: 50~1500 ml

  • Respiratory Rate: 1~99 bpm

  • I/E ratio: 4:1--1:4

  • (Ptr) Range:-1.0~1.0kPa

  • The upper pressure limit: 1 ~ 6KPa

  • PEEP: 0.1 ~ 1KPa

  • Oxygen concentration : 21% ~ 100% adjustable (optional air compressor)

  • Transfer Time from Controlled to Assistant Respiration:6s

  • Sigh Volume: 150% of tidal volume

  • Ventilation Capacity per Minute:≥18L

  • Maximum Safe Pressure:≤6.0kPa

  • Air supply range:280~600kPa

  • Monitoring parameters: tidal volume, minute ventilation, the total frequency, peak airway pressure, oxygen concentration, self-triggering

  • Alarm parameters: the lack of oxygen supply, airway pressure upper limit airway pressure limit, power, sustained pressure, asphyxia, low tidal volume, oxygen concentration, gas missing

  • Power supply: AC220V, 50Hz


Humidifier

  • Thermostat regulated

  • Automatic over-temperature power-off protection
